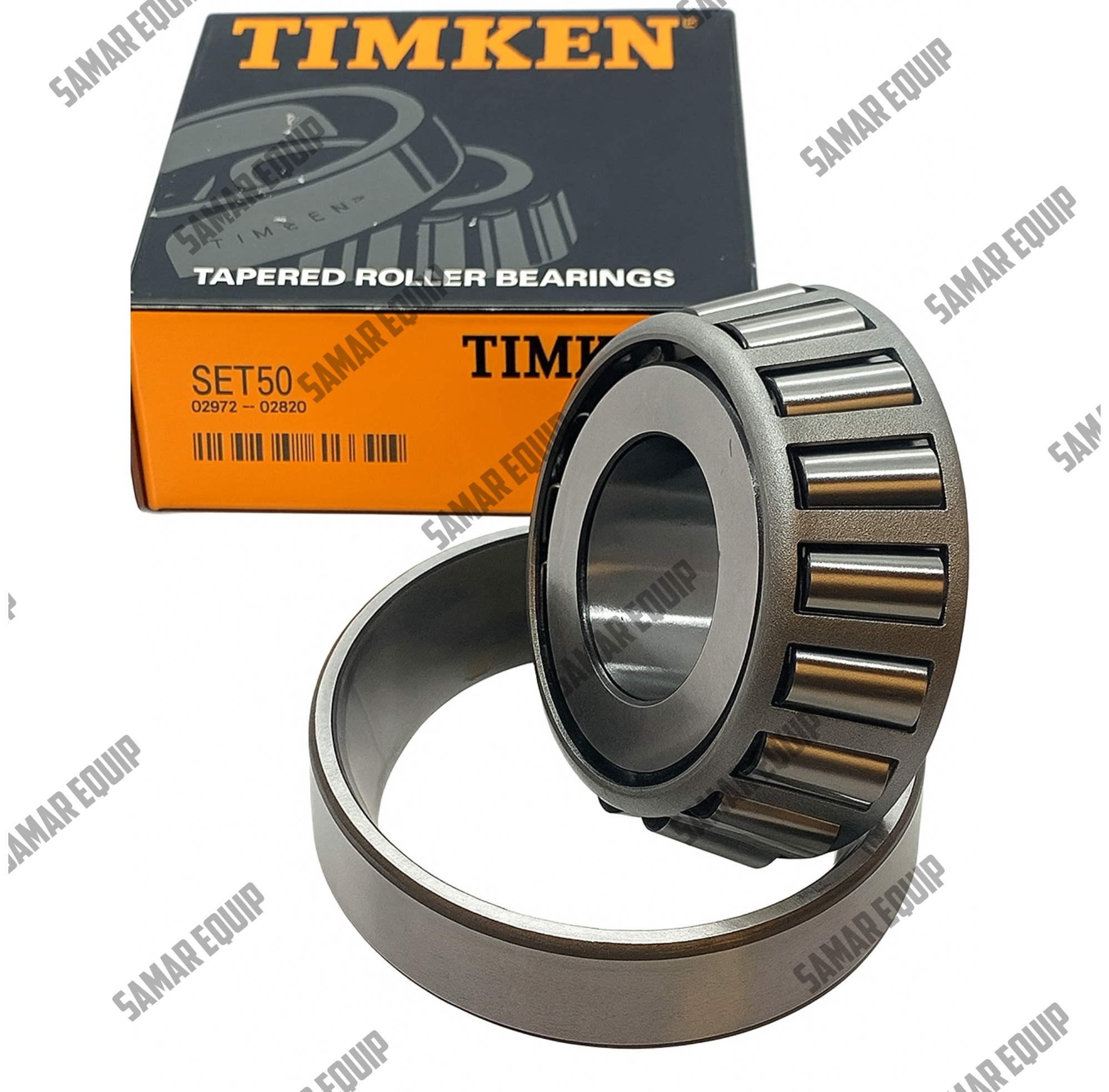

TIMKEN – SINGLE ROW TAPERED ROLLER BEARING-TS TYPE(PART# 02872/02820)

27%
TIMKEN - SINGLE ROW TAPERED ROLLER BEARING-TS TYPE(PART# 02872/02820)
TIMKEN - SINGLE ROW TAPERED ROLLER BEARING-TS TYPE(PART# 02872/02820) - Image 2
$60.90 Original price was: $60.90.$44.90Current price is: $44.90.
In Stock
Add to wishlist
In Stock

Brand: Timken

Part No.: 02872 (Cone) / 02820 (Cup)

Type: Single Row Tapered Roller Bearing (TS Type)

Made in: India

Dimensions: Bore Ø 28.575 mm | Outer Ø 73.025 mm | Width 22.225 mm

Weight: 0.47 kg (1.05 lbs)

  • Guaranteed Fitment: Always the correct part
  • Free Standard Shipping
  • 14 Days Returns Policy
  • Safe & Secure Payments
  • 24/7 customer support
SKU: 02872-02820
Category:
Tags: , , , , , , , ,
Brand:

Description

Timken Genuine Single Row Tapered Roller Bearing – TS Type (02872/02820)

Upgrade your machinery with the Timken 02872/02820 Single Row Tapered Roller Bearing (TS Type) – engineered for industrial automation, motion control, and mechanical power transmission. Manufactured in India by Timken, a global leader in bearing technology, this genuine part ensures smooth, reliable, and efficient operation in demanding applications.

Product Details

  • Brand: Timken

  • Part Number: 02872/02820 (Also Known As: 02872 – 02820)

  • Category: Single Row Tapered Roller Bearing (TS Type)

  • Made In: India

Dimensions

  • Bore Diameter (d): 28.575 mm (1.125”)

  • Outer Diameter (D): 73.025 mm (2.875”)

  • Width (T): 22.225 mm (0.875”)

  • Cone Width (B): 22.225 mm (0.875”)

  • Cup Width (C): 17.462 mm (0.6875”)

Load Ratings & Factors

  • Dynamic Load Rating (C1): 65,700 N (14,800 lbf)

  • Basic Dynamic Radial Load Rating (C90): 17,000 N (3,830 lbf)

  • Basic Dynamic Thrust Load Rating (Ca90): 13,200 N (2,980 lbf)

  • Static Load Rating (C0): 74,900 N (16,800 lbf)

  • Factor (e): 0.45

  • Factor (Y): 1.32

  • Ratio (K): 1.29

Design & Clearance

  • Effective Center Location (a): -3.8 mm (-0.15”)

  • Maximum Shaft Fillet Radius (R): 0.8 mm (0.03”)

  • Max Housing Fillet Radius (r): 3.3 mm (0.13”)

  • Cone Backface Backing Diameter (db): 37.5 mm (1.48”)

  • Cup Backface Backing Diameter (Db): 62 mm (2.44”)

  • Cage-Cone Backface Clearance (Aa): 1.4 mm (0.05”)

  • Cage-Cone Frontface Clearance (Ab): 1 mm (0.04”)

Other Details

  • Weight: 0.47 kg (1.05 lbs)

  • Geometry Factor (G1): 20.6

  • Geometry Factor (G2): 10.1

  • Geometry Factor (Cg): 0.074

  • Inner Part Number: 02872

  • Outer Part Number: 02820

Additional information

Brand

TIMKEN

Cross Reference

02872/02820 02872-02820 02872 – 02820

Make/Model

JCB 1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D 4C 4CN 4CX
